TEA1506AT/N1,518

Enlarger

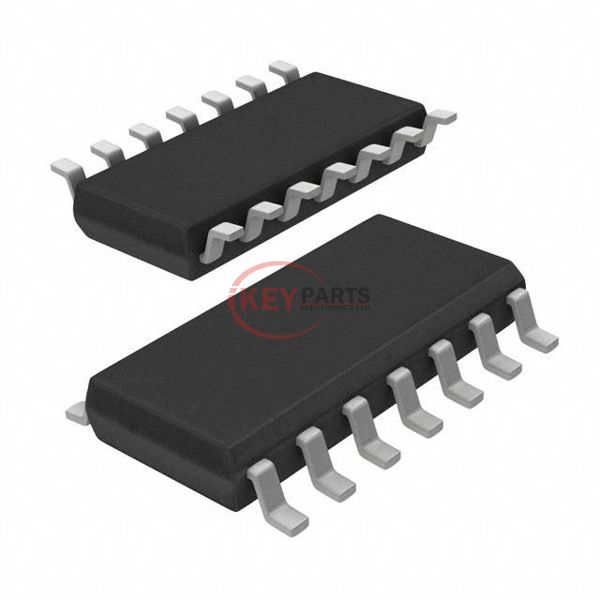

Lmages are for reference only See Product Specitications

NXP Semiconductors TEA1506AT/N1,518

Manufacturer :
NXP Semiconductors
Mfr. Part # :
TEA1506AT/N1,518
Description
IC CONTROLLER SMPS 14-SOIC
Catalog
PMIC - AC DC Converters, Offline Switchers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TEA1506AT/N1,518 PDF
In Stock
352
TEA1506AT/N1,518 Tech Specifications
SeriesGreenChip™ II
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Output IsolationIsolated
Internal Switch(s)No
Voltage - Breakdown650V
TopologyFlyback
Voltage - Start Up11 V
Voltage - Supply (Vcc/Vdd)8.7V ~ 20V
Duty Cycle-
Frequency - Switching25kHz ~ 175kHz
Power (Watts)150 W
Fault ProtectionCurrent Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit
Control Features-
Operating Temperature-20°C ~ 145°C (TJ)
Package / Case14-SOIC (0.154", 3.90mm Width)
Supplier Device Package14-SO
Mounting TypeSurface Mount
Request Quote Now
Request Quote Now

We can supply TEA1506AT/N1,518, use the request quote form to request TEA1506AT/N1,518 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TEA1506AT/N1,518. The price and lead time for TEA1506AT/N1,518 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TEA1506AT/N1,518. We look forward to working with you to establish long-term relations of cooperation.
