VIPER20-22-E

Enlarger

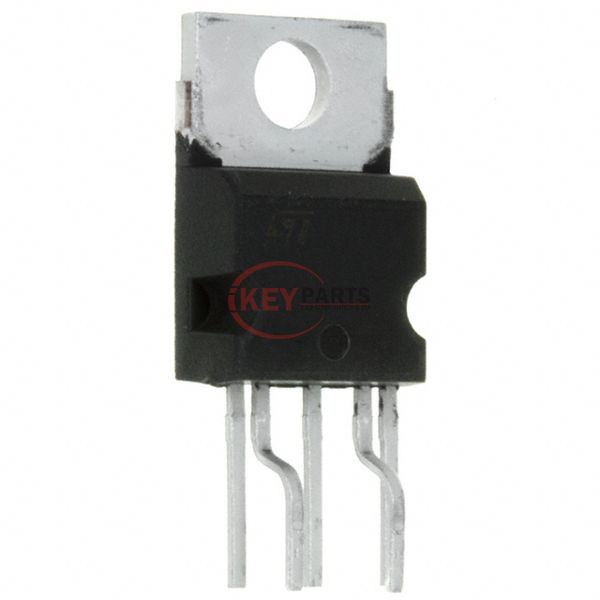

Lmages are for reference only See Product Specitications

STMicroelectronics VIPER20-22-E

Manufacturer :
STMicroelectronics
Mfr. Part # :
VIPER20-22-E
Description
IC SWIT SMPS CM OTP PENTAWATT5
Catalog
PMIC - AC DC Converters, Offline Switchers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
VIPER20-22-E PDF
In Stock
423
VIPER20-22-E Tech Specifications
SeriesVIPERâ„¢
PackageTube
Part StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown620V
TopologyFlyback
Voltage - Start Up11 V
Voltage - Supply (Vcc/Vdd)8V ~ 15V
Duty Cycle-
Frequency - SwitchingUp to 200kHz
Power (Watts)20 W
Fault ProtectionCurrent Limiting, Over Temperature
Control Features-
Operating Temperature-
Package / CasePentawatt-5 HV (Bent and Staggered Leads)
Supplier Device Package5-PENTAWATT
Mounting TypeSurface Mount
Request Quote Now
Request Quote Now

We can supply VIPER20-22-E, use the request quote form to request VIPER20-22-E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number VIPER20-22-E. The price and lead time for VIPER20-22-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# VIPER20-22-E. We look forward to working with you to establish long-term relations of cooperation.
