NCP1568B06ADBR2G

Enlarger

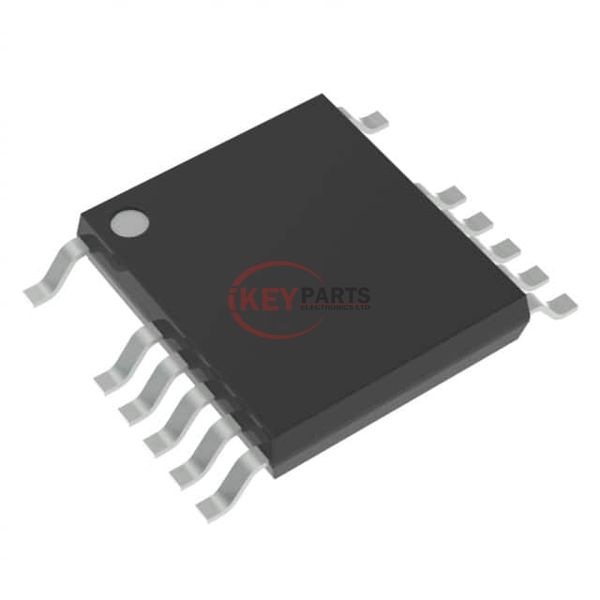

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NCP1568B06ADBR2G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NCP1568B06ADBR2G
Description
ACTIVE CLAMP FLYBACK
Catalog
PMIC - AC DC Converters, Offline Switchers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NCP1568B06ADBR2G PDF
NCP1568B06ADBR2G Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown-
TopologyFlyback
Voltage - Start Up15.2 V
Voltage - Supply (Vcc/Vdd)10V ~ 27V
Duty Cycle79%
Frequency - Switching100kHz ~ 1MHz
Power (Watts)-
Fault ProtectionCurrent Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit
Control FeaturesFrequency Control, Soft Start
Operating Temperature-40°C ~ 125°C (TJ)
Package / Case16-TSSOP (0.173", 4.40mm Width), 12 Leads
Supplier Device Package16-TSSOP
Mounting TypeSurface Mount
Request Quote Now
Request Quote Now

We can supply NCP1568B06ADBR2G, use the request quote form to request NCP1568B06ADBR2G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NCP1568B06ADBR2G. The price and lead time for NCP1568B06ADBR2G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NCP1568B06ADBR2G. We look forward to working with you to establish long-term relations of cooperation.
