AP3105NAKTR-G1

Enlarger

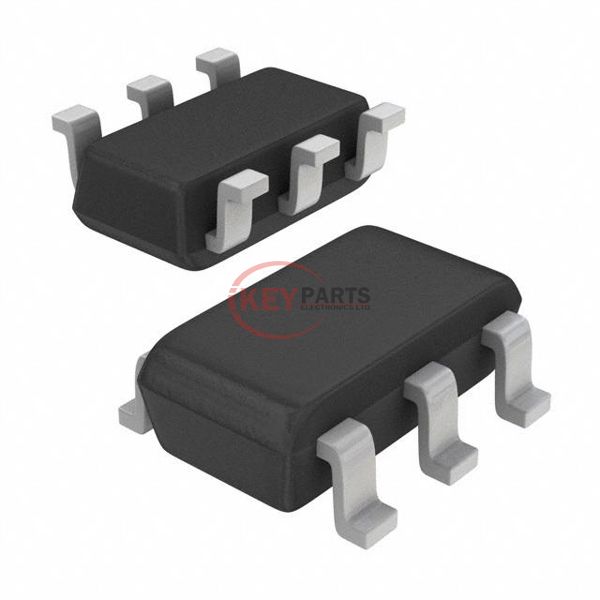

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) AP3105NAKTR-G1

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
AP3105NAKTR-G1
Description
IC PWM CTLR CURR MODE SOT23-6
Catalog
PMIC - AC DC Converters, Offline Switchers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AP3105NAKTR-G1 PDF
AP3105NAKTR-G1 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Output IsolationIsolated
Internal Switch(s)No
Voltage - Breakdown-
TopologyFlyback
Voltage - Start Up15.5 V
Voltage - Supply (Vcc/Vdd)10V ~ 25V
Duty Cycle75%
Frequency - Switching65kHz
Power (Watts)-
Fault ProtectionCurrent Limiting, Over Load, Over Voltage
Control Features-
Operating Temperature-40°C ~ 150°C (TJ)
Package / CaseSOT-23-6
Supplier Device PackageSOT-23-6
Mounting TypeSurface Mount
Request Quote Now
Request Quote Now

We can supply AP3105NAKTR-G1, use the request quote form to request AP3105NAKTR-G1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AP3105NAKTR-G1. The price and lead time for AP3105NAKTR-G1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AP3105NAKTR-G1. We look forward to working with you to establish long-term relations of cooperation.
