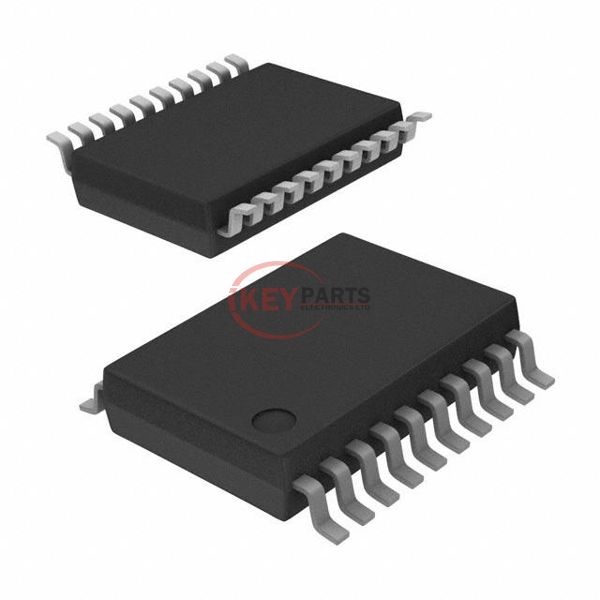

SN74ACT534DBRG4

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments SN74ACT534DBRG4

Manufacturer :
Texas Instruments
Mfr. Part # :
SN74ACT534DBRG4
Description
IC FF D-TYPE SNGL 8BIT 20SSOP
Catalog
Logic - Flip Flops
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SN74ACT534DBRG4 PDF
In Stock
368
SN74ACT534DBRG4 Tech Specifications
Series74ACT
PackageTape & Reel (TR)
Part StatusObsolete
FunctionStandard
TypeD-Type
Output TypeTri-State, Inverted
Number of Elements1
Number of Bits per Element8
Clock Frequency100 MHz
Max Propagation Delay @ V, Max CL11.5ns @ 5V, 50pF
Trigger TypePositive Edge
Current - Output High, Low24mA, 24mA
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Iq)4 µA
Input Capacitance4.5 pF
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device Package20-SSOP
Package / Case20-SSOP (0.209", 5.30mm Width)
Request Quote Now
Request Quote Now

We can supply SN74ACT534DBRG4, use the request quote form to request SN74ACT534DBRG4 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SN74ACT534DBRG4. The price and lead time for SN74ACT534DBRG4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SN74ACT534DBRG4. We look forward to working with you to establish long-term relations of cooperation.
