M74HC534B1R

Enlarger

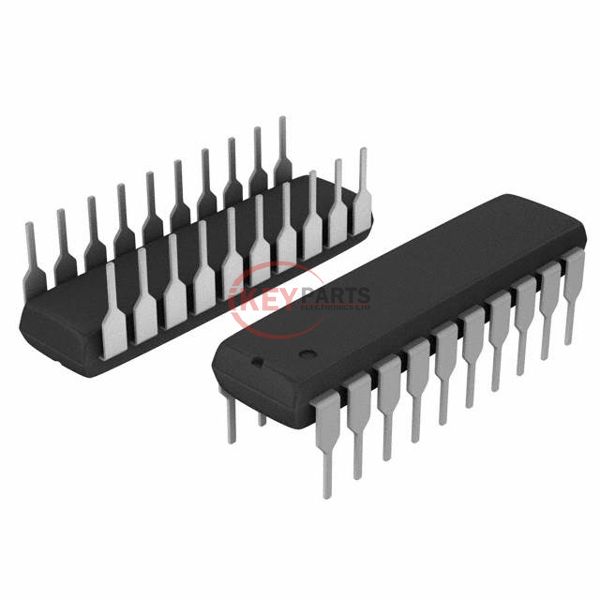

Lmages are for reference only See Product Specitications

STMicroelectronics M74HC534B1R

Manufacturer :
STMicroelectronics
Mfr. Part # :
M74HC534B1R
Description
IC FF D-TYPE SNGL 8BIT 20DIP
Catalog
Logic - Flip Flops
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
M74HC534B1R PDF
In Stock
874
M74HC534B1R Tech Specifications
Series74HC
PackageTube
Part StatusObsolete
FunctionStandard
TypeD-Type
Output TypeTri-State, Inverted
Number of Elements1
Number of Bits per Element8
Clock Frequency90 MHz
Max Propagation Delay @ V, Max CL32ns @ 6V, 150pF
Trigger TypePositive Edge
Current - Output High, Low7.8mA, 7.8mA
Voltage - Supply2V ~ 6V
Current - Quiescent (Iq)4 µA
Input Capacitance5 pF
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeThrough Hole
Supplier Device Package20-DIP
Package / Case20-DIP (0.300", 7.62mm)
Request Quote Now
Request Quote Now

We can supply M74HC534B1R, use the request quote form to request M74HC534B1R pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number M74HC534B1R. The price and lead time for M74HC534B1R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# M74HC534B1R. We look forward to working with you to establish long-term relations of cooperation.
