SN74S174NSR

Enlarger

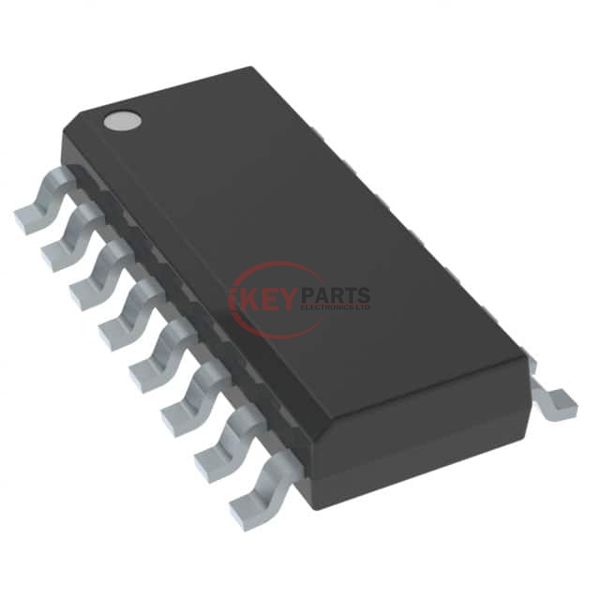

Lmages are for reference only See Product Specitications

Texas Instruments SN74S174NSR

Manufacturer :
Texas Instruments
Mfr. Part # :
SN74S174NSR
Description
IC FF D-TYPE SNGL 6BIT 16SO
Catalog
Logic - Flip Flops
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SN74S174NSR PDF
In Stock
952
SN74S174NSR Tech Specifications
Series74S
PackageTape & Reel (TR)
Part StatusObsolete
FunctionMaster Reset
TypeD-Type
Output TypeNon-Inverted
Number of Elements1
Number of Bits per Element6
Clock Frequency110 MHz
Max Propagation Delay @ V, Max CL12ns @ 5V, 15pF
Trigger TypePositive Edge
Current - Output High, Low1mA, 20mA
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Iq)144 mA
Input Capacitance-
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Supplier Device Package16-SO
Package / Case16-SOIC (0.209", 5.30mm Width)
Request Quote Now
Request Quote Now

We can supply SN74S174NSR, use the request quote form to request SN74S174NSR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SN74S174NSR. The price and lead time for SN74S174NSR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SN74S174NSR. We look forward to working with you to establish long-term relations of cooperation.
