HMC511LP5

Enlarger

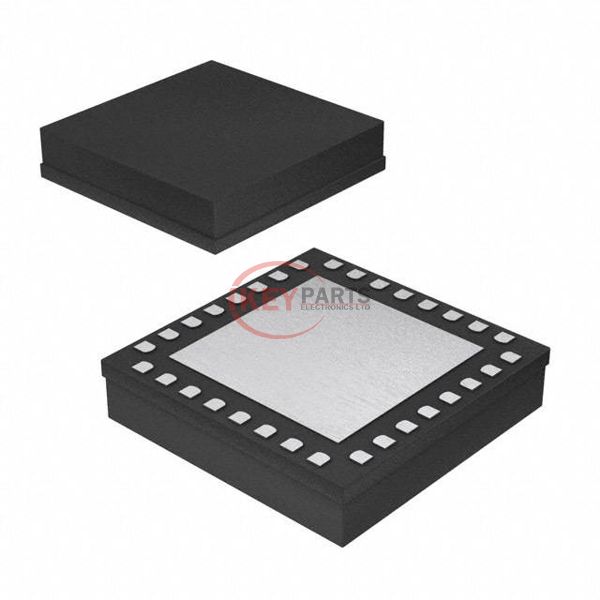

Lmages are for reference only See Product Specitications

Linear Technology (Analog Devices, Inc.) HMC511LP5

Manufacturer :
Linear Technology (Analog Devices, Inc.)
Mfr. Part # :
HMC511LP5
Description
VCO 4.8GHZ/9.6GHZ 2-13V 5X5MM
Catalog
VCOs (Voltage Controlled Oscillators)
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
HMC511LP5 PDF
HMC511LP5 Tech Specifications
Series-
PackageStrip
Part StatusObsolete
Frequency Range4.525 ~ 5.075GHz, 9.05 ~ 10.15GHz
Frequency - Center4.8GHz, 9.6GHz
Voltage - Supply5V
Tuning Voltage (VDC)2 V ~ 13.0 V
2nd Harmonic, Typ (dBc)15
Icc Max300mA
Pushing (MHz/V)15
Power (dBm)8±3, 12.5±3.5
Phase Noise Typ (dBc/Hz)-115
Operating Temperature-40°C ~ 85°C
Package / Case32-VFQFN Exposed Pad, CSP
Size / Dimension0.197" L x 0.197" W (5.00mm x 5.00mm)
Height0.039" (1.00mm)
Request Quote Now
Request Quote Now

We can supply HMC511LP5, use the request quote form to request HMC511LP5 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HMC511LP5. The price and lead time for HMC511LP5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HMC511LP5. We look forward to working with you to establish long-term relations of cooperation.
