PT78ST109H

Enlarger

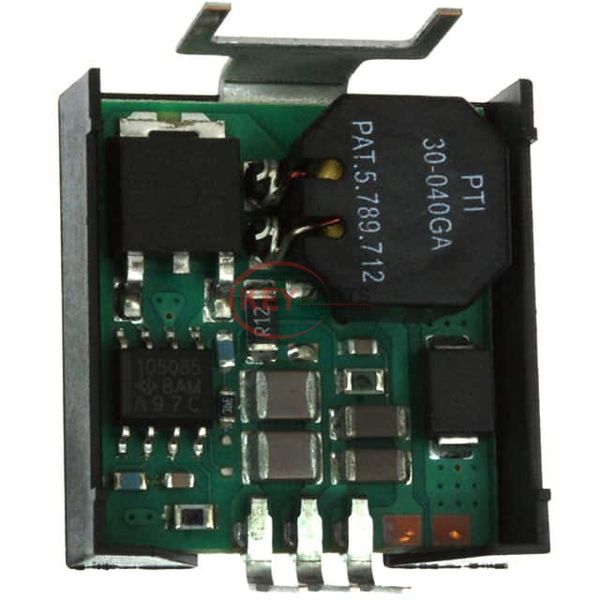

Lmages are for reference only See Product Specitications

Texas Instruments PT78ST109H

Manufacturer :
Texas Instruments
Mfr. Part # :
PT78ST109H
Description
DC DC CONVERTER 9V
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PT78ST109H PDF
In Stock
964
PT78ST109H Tech Specifications
SeriesPT78ST100
PackageTray
Part StatusObsolete
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)13V
Voltage - Input (Max)38V
Voltage - Output 19V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)1.5A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesOTP, SCP
Operating Temperature-40°C ~ 85°C
Efficiency85%
Mounting TypeThrough Hole, Right Angle
Package / Case3-SIP Module
Size / Dimension0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PT78ST109H, use the request quote form to request PT78ST109H pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PT78ST109H. The price and lead time for PT78ST109H depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PT78ST109H. We look forward to working with you to establish long-term relations of cooperation.
