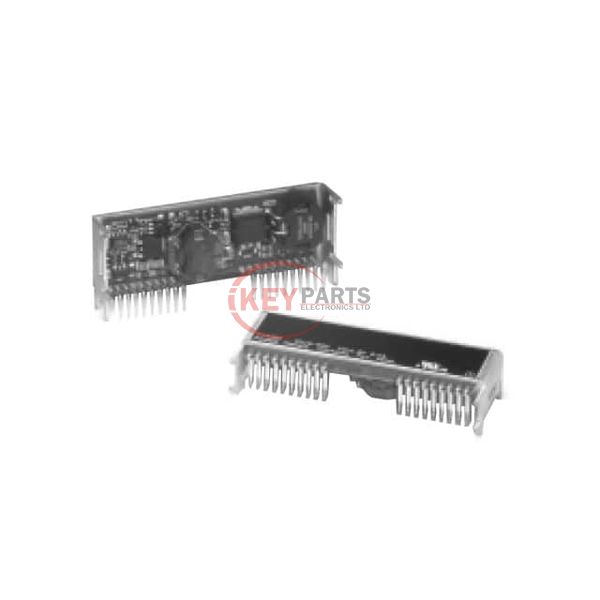

PT4566A

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments PT4566A

Manufacturer :
Texas Instruments
Mfr. Part # :
PT4566A
Description
DC DC CONVERTER 2.5V 30W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PT4566A PDF
In Stock
942
PT4566A Tech Specifications
SeriesExcalibur™ PT4560 (30W)
PackageTray
Part StatusObsolete
TypeIsolated Module
Number of Outputs1
Voltage - Input (Min)36V
Voltage - Input (Max)75V
Voltage - Output 12.5V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)8A
Power (Watts)30 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
Features-
Operating Temperature-40°C ~ 85°C
Efficiency69%
Mounting TypeThrough Hole, Right Angle
Package / Case19-SIP Module
Size / Dimension3.00" L x 1.19" W x 0.50" H (76.2mm x 30.2mm x 12.7mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PT4566A, use the request quote form to request PT4566A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PT4566A. The price and lead time for PT4566A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PT4566A. We look forward to working with you to establish long-term relations of cooperation.
