PTN78000HAZT

Enlarger

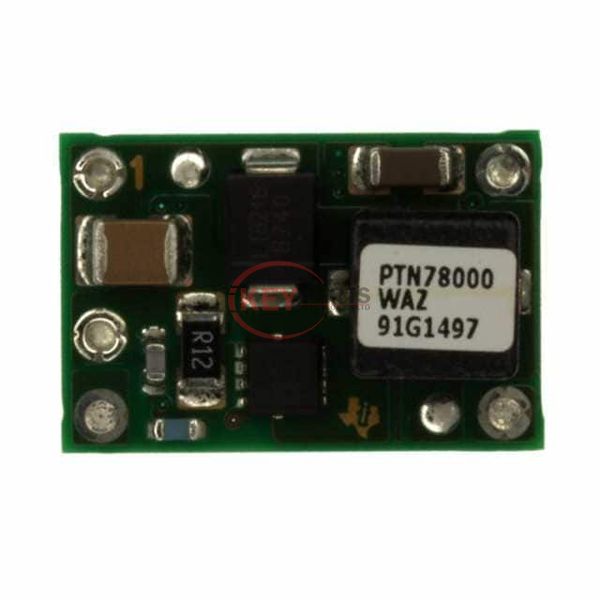

Lmages are for reference only See Product Specitications

Texas Instruments PTN78000HAZT

Manufacturer :
Texas Instruments
Mfr. Part # :
PTN78000HAZT
Description
DC DC CONVERTER 11.85-22V
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTN78000HAZT PDF
In Stock
359
PTN78000HAZT Tech Specifications
SeriesPTN78000H
PackageTape & Reel (TR)
Part StatusObsolete
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)15V
Voltage - Input (Max)36V
Voltage - Output 111.85 ~ 22V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)1.5A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesOCP, OTP, UVLO
Operating Temperature-40°C ~ 85°C
Efficiency94%
Mounting TypeSurface Mount
Package / Case5-SMD Module
Size / Dimension0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PTN78000HAZT, use the request quote form to request PTN78000HAZT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTN78000HAZT. The price and lead time for PTN78000HAZT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTN78000HAZT. We look forward to working with you to establish long-term relations of cooperation.
