PTB48501AAZ

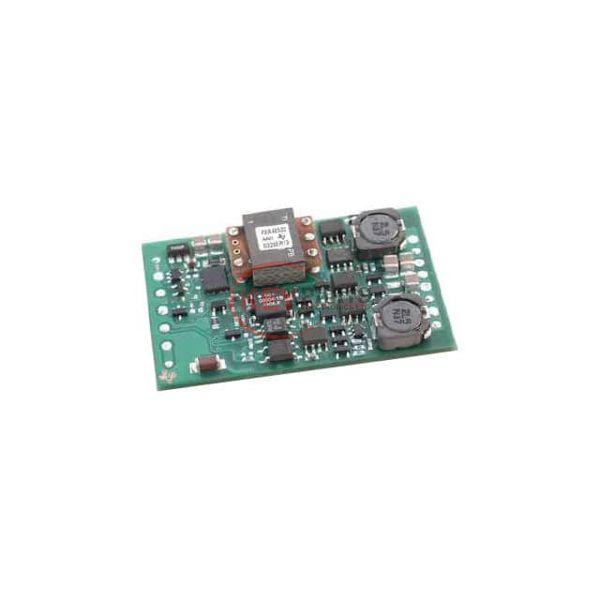

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments PTB48501AAZ

Manufacturer :
Texas Instruments
Mfr. Part # :
PTB48501AAZ
Description
DC DC CONVERTER 3.3V 1.2V 32W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTB48501AAZ PDF
In Stock
475
PTB48501AAZ Tech Specifications
SeriesPTB4850x
PackageTray
Part StatusObsolete
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)36V
Voltage - Input (Max)75V
Voltage - Output 13.3V
Voltage - Output 21.2V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)6A, 10.5A
Power (Watts)32 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
FeaturesRemote On/Off, OCP, OTP, UVLO
Operating Temperature-40°C ~ 85°C
Efficiency81%
Mounting TypeSurface Mount
Package / Case10-SMD Module
Size / Dimension2.22" L x 1.45" W x 0.50" H (56.4mm x 36.8mm x 12.7mm)
Supplier Device Package-
Control FeaturesEnable, Active High
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PTB48501AAZ, use the request quote form to request PTB48501AAZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTB48501AAZ. The price and lead time for PTB48501AAZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTB48501AAZ. We look forward to working with you to establish long-term relations of cooperation.
