PT4509N

Enlarger

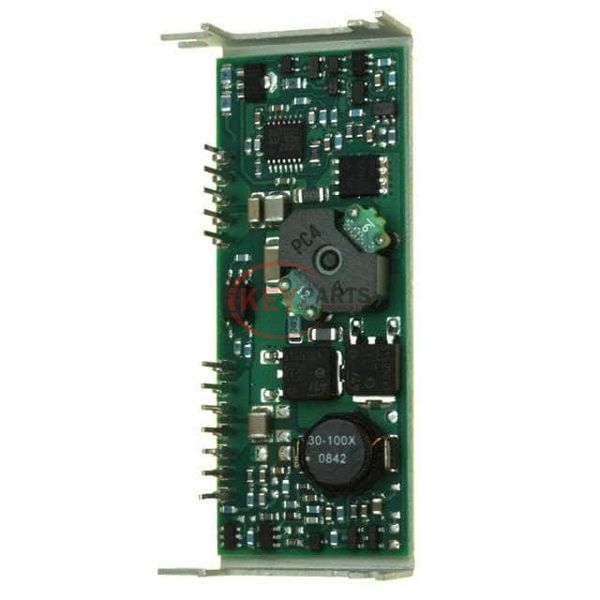

Lmages are for reference only See Product Specitications

Texas Instruments PT4509N

Manufacturer :
Texas Instruments
Mfr. Part # :
PT4509N
Description
DC DC CONVERTER 1.2V 20W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PT4509N PDF
In Stock
521
PT4509N Tech Specifications
SeriesExcalibur™ PT4500 (20W)
PackageTray
Part StatusObsolete
TypeIsolated Module
Number of Outputs1
Voltage - Input (Min)18V
Voltage - Input (Max)40V
Voltage - Output 11.2V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)5A
Power (Watts)20 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
Features-
Operating Temperature-40°C ~ 85°C
Efficiency59%
Mounting TypeThrough Hole
Package / Case12-SIP Module
Size / Dimension2.58" L x 0.50" W x 1.02" H (65.5mm x 12.7mm x 25.9mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PT4509N, use the request quote form to request PT4509N pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PT4509N. The price and lead time for PT4509N depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PT4509N. We look forward to working with you to establish long-term relations of cooperation.
