PT6506L

Enlarger

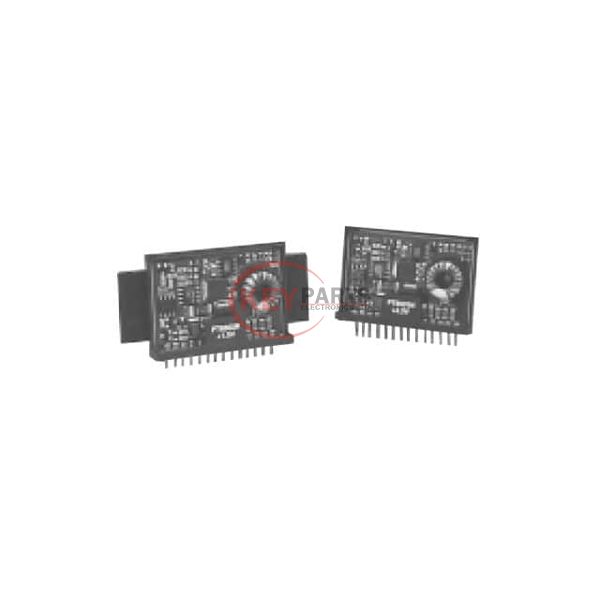

Lmages are for reference only See Product Specitications

Texas Instruments PT6506L

Manufacturer :
Texas Instruments
Mfr. Part # :
PT6506L
Description
DC DC CONVERTER 1.8V 14W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PT6506L PDF
In Stock
505
PT6506L Tech Specifications
SeriesPT6500
PackageTray
Part StatusObsolete
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)3.1V
Voltage - Input (Max)6V
Voltage - Output 11.8V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)8A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesOTP, SCP
Operating Temperature-40°C ~ 85°C
Efficiency74%
Mounting TypeSurface Mount
Package / Case14-SMD Module
Size / Dimension1.71" L x 1.22" W x 0.42" H (43.4mm x 31.0mm x 10.7mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PT6506L, use the request quote form to request PT6506L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PT6506L. The price and lead time for PT6506L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PT6506L. We look forward to working with you to establish long-term relations of cooperation.
