PT5814C

Enlarger

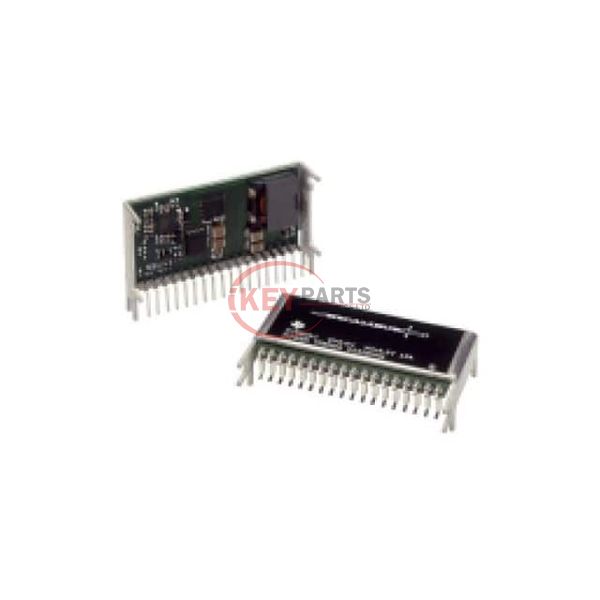

Lmages are for reference only See Product Specitications

Texas Instruments PT5814C

Manufacturer :
Texas Instruments
Mfr. Part # :
PT5814C
Description
DC DC CONVERTER 1.5V
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PT5814C PDF
In Stock
375
PT5814C Tech Specifications
SeriesExcalibur™ PT5810
PackageTray
Part StatusObsolete
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)2.95V
Voltage - Input (Max)3.65V
Voltage - Output 11.5V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)20A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesRemote On/Off, OCP, OTP, SCP
Operating Temperature-40°C ~ 85°C
Efficiency89%
Mounting TypeSurface Mount
Package / Case18-SMD Module
Size / Dimension2.00" L x 1.19" W x 0.31" H (50.8mm x 30.2mm x 7.9mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PT5814C, use the request quote form to request PT5814C pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PT5814C. The price and lead time for PT5814C depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PT5814C. We look forward to working with you to establish long-term relations of cooperation.
