PT5806C

Enlarger

Lmages are for reference only See Product Specitications

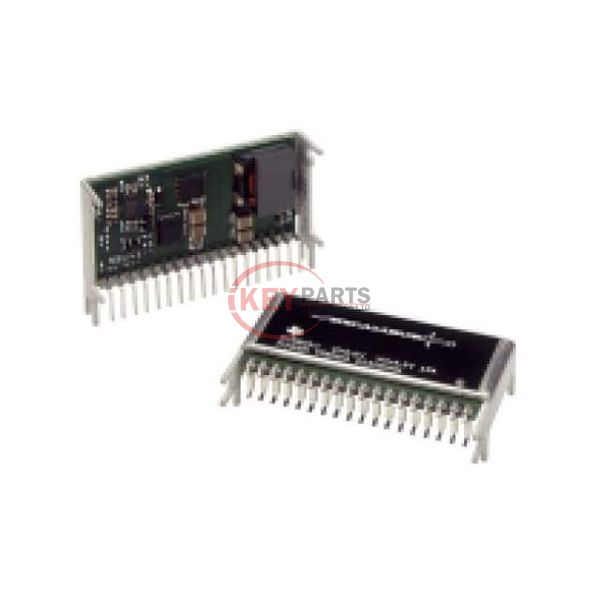

Texas Instruments PT5806C

Manufacturer :
Texas Instruments
Mfr. Part # :
PT5806C
Description
DC DC CONVERTER 1V
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PT5806C PDF
In Stock
230
PT5806C Tech Specifications
SeriesExcalibur™ PT5800
PackageTray
Part StatusObsolete
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)5.5V
Voltage - Output 11V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)18A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesOCP, OTP
Operating Temperature-40°C ~ 85°C
Efficiency84%
Mounting TypeSurface Mount
Package / Case18-SMD Module
Size / Dimension2.00" L x 1.19" W x 0.31" H (50.8mm x 30.2mm x 7.9mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PT5806C, use the request quote form to request PT5806C pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PT5806C. The price and lead time for PT5806C depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PT5806C. We look forward to working with you to establish long-term relations of cooperation.
