PT6946A

Enlarger

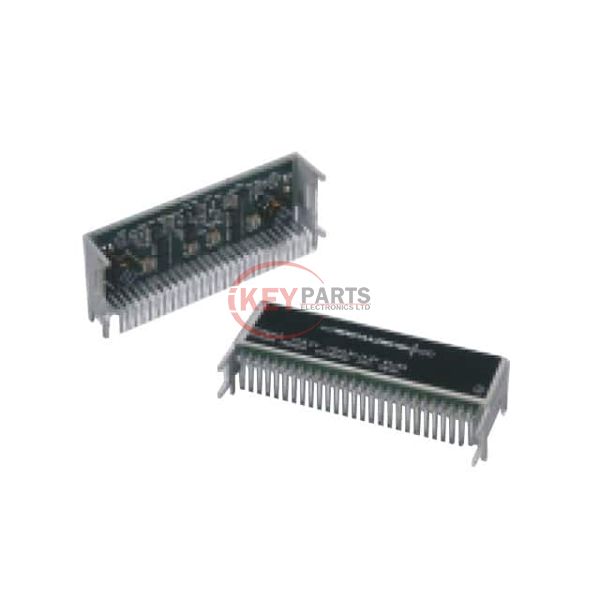

Lmages are for reference only See Product Specitications

Texas Instruments PT6946A

Manufacturer :
Texas Instruments
Mfr. Part # :
PT6946A
Description
DC DC CONVERTER 2.5V 1.8V
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PT6946A PDF
In Stock
240
PT6946A Tech Specifications
SeriesExcalibur™ PT6940
PackageTray
Part StatusObsolete
TypeNon-Isolated PoL Module
Number of Outputs2
Voltage - Input (Min)3.1V
Voltage - Input (Max)5.5V
Voltage - Output 12.5V
Voltage - Output 21.8V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)6A, 6A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
Features-
Operating Temperature-40°C ~ 85°C
Efficiency89%
Mounting TypeThrough Hole, Horizontal
Package / Case27-SIP Module, Horizontal
Size / Dimension3.00" L x 1.19" W x 0.50" H (76.2mm x 30.2mm x 12.7mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PT6946A, use the request quote form to request PT6946A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PT6946A. The price and lead time for PT6946A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PT6946A. We look forward to working with you to establish long-term relations of cooperation.
