PT5109A

Enlarger

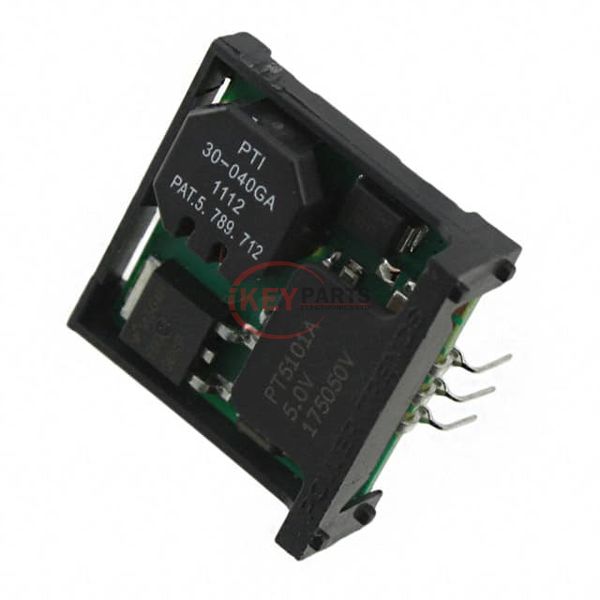

Lmages are for reference only See Product Specitications

Texas Instruments PT5109A

Manufacturer :
Texas Instruments
Mfr. Part # :
PT5109A
Description
DC DC CONVERTER 5.6V 5W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PT5109A PDF
In Stock
490
PT5109A Tech Specifications
SeriesPT5100
PackageTray
Part StatusObsolete
TypeLinear Regulator Replacement
Number of Outputs1
Voltage - Input (Min)9.6V
Voltage - Input (Max)38V
Voltage - Output 15.6V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)1A
Power (Watts)5 W
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesOCP, OTP
Operating Temperature-40°C ~ 85°C
Efficiency90%
Mounting TypeThrough Hole, Right Angle
Package / Case3-SIP Module
Size / Dimension1.00" L x 1.02" W x 0.38" H (25.4mm x 25.9mm x 9.7mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PT5109A, use the request quote form to request PT5109A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PT5109A. The price and lead time for PT5109A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PT5109A. We look forward to working with you to establish long-term relations of cooperation.
