BSR56,215

Enlarger

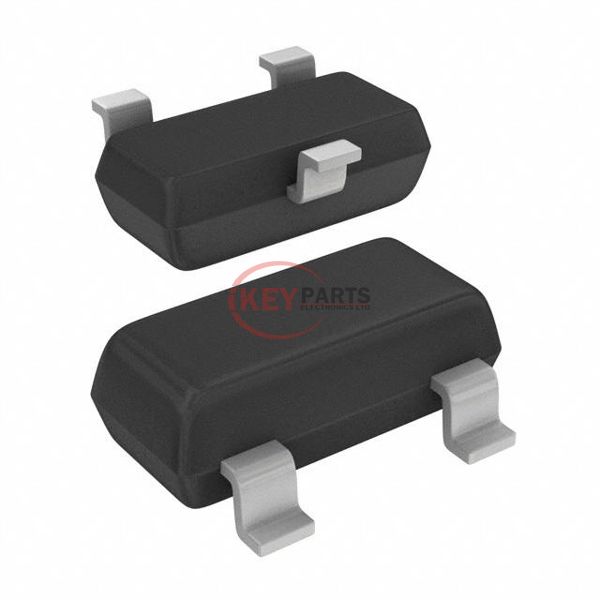

Lmages are for reference only See Product Specitications

NXP Semiconductors BSR56,215

Manufacturer :
NXP Semiconductors
Mfr. Part # :
BSR56,215
Description
JFET N-CH 40V 0.25W SOT23
Catalog
Transistors - JFETs
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSR56,215 PDF
In Stock
206
BSR56,215 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
Voltage - Breakdown (V(BR)GSS)40 V
Drain to Source Voltage (Vdss)40 V
Current - Drain (Idss) @ Vds (Vgs=0)50 mA @ 15 V
Current Drain (Id) - Max20 mA
Voltage - Cutoff (VGS off) @ Id4 V @ 0.5 nA
Input Capacitance (Ciss) (Max) @ Vds-
Resistance - RDS(On)25 Ohms
Power - Max250 mW
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSOT-23 (TO-236AB)
Request Quote Now
Request Quote Now

We can supply BSR56,215, use the request quote form to request BSR56,215 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSR56,215. The price and lead time for BSR56,215 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSR56,215. We look forward to working with you to establish long-term relations of cooperation.
