PMBFJ109,215

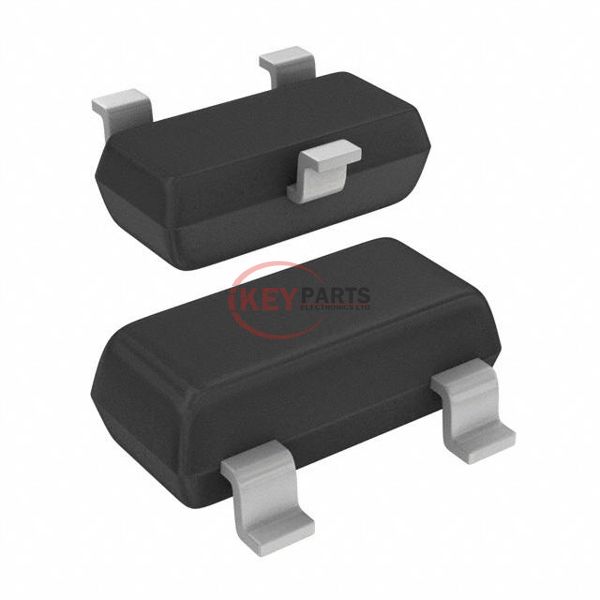

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors PMBFJ109,215

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PMBFJ109,215
Description
JFET N-CH 25V 250MW SOT23
Catalog
Transistors - JFETs
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMBFJ109,215 PDF
In Stock
799
PMBFJ109,215 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
Voltage - Breakdown (V(BR)GSS)25 V
Drain to Source Voltage (Vdss)25 V
Current - Drain (Idss) @ Vds (Vgs=0)40 mA @ 15 V
Current Drain (Id) - Max-
Voltage - Cutoff (VGS off) @ Id6 V @ 1 µA
Input Capacitance (Ciss) (Max) @ Vds30pF @ 10V (VGS)
Resistance - RDS(On)12 Ohms
Power - Max250 mW
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSOT-23 (TO-236AB)
Request Quote Now
Request Quote Now

We can supply PMBFJ109,215, use the request quote form to request PMBFJ109,215 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMBFJ109,215. The price and lead time for PMBFJ109,215 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMBFJ109,215. We look forward to working with you to establish long-term relations of cooperation.
