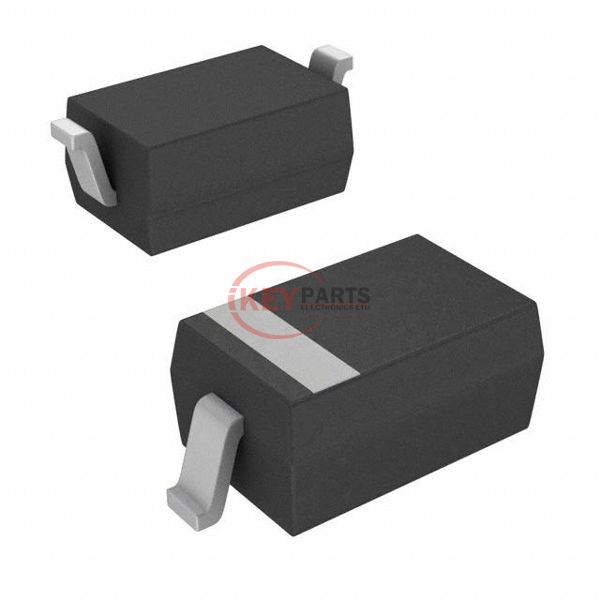

1N4747AW-TP

Enlarger

Lmages are for reference only See Product Specitications

Micro Commercial Components (MCC) 1N4747AW-TP

Manufacturer :
Micro Commercial Components (MCC)
Mfr. Part # :
1N4747AW-TP
Description
DIODE ZENER 20V 1W SOD123
Catalog
Diodes - Zener - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
1N4747AW-TP PDF
In Stock
661
1N4747AW-TP Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Voltage - Zener (Nom) (Vz)20 V
Tolerance±5%
Power - Max1 W
Impedance (Max) (Zzt)22 Ohms
Current - Reverse Leakage @ Vr5 µA @ 15.2 V
Voltage - Forward (Vf) (Max) @ If1.2 V @ 200 mA
Operating Temperature-55°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseSOD-123
Supplier Device PackageSOD-123
Request Quote Now
Request Quote Now

We can supply 1N4747AW-TP, use the request quote form to request 1N4747AW-TP pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1N4747AW-TP. The price and lead time for 1N4747AW-TP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1N4747AW-TP. We look forward to working with you to establish long-term relations of cooperation.
