108990004

Enlarger

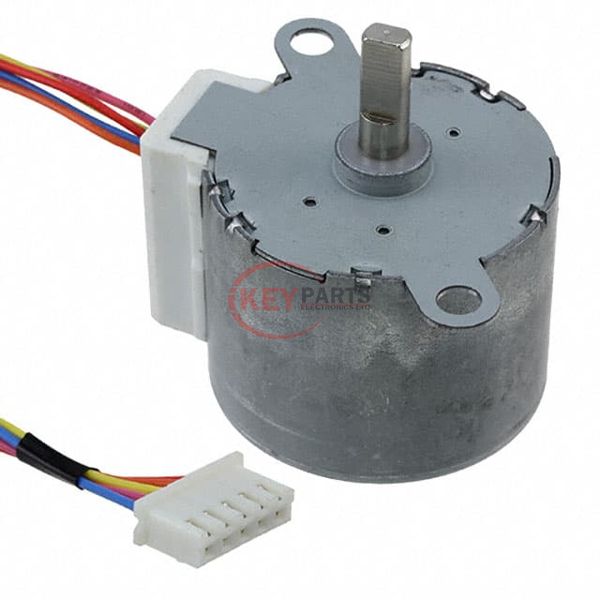

Lmages are for reference only See Product Specitications

Seeed 108990004

Manufacturer :
Seeed
Mfr. Part # :
108990004
Description
STEPPER MOTOR PM UNIPOLAR 12V
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
108990004 PDF
108990004 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
TypePermanent Magnet
Coil TypeUnipolar
Voltage - Rated12VDC
Current Rating (Amps)-
Steps per Revolution42.5
Step Angle3.75°
Accuracy-
Torque - Holding (oz-in / mNm)41.66 / 294.2
Size / DimensionRound - 1.378" Dia (35.00mm)
NEMA Frame Size-
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing1.181" (30.00mm)
Mounting Hole Spacing1.650" (42.00mm)
Termination StyleWire Leads with Connector
Operating Temperature-
Coil Resistance100 Ohms
FeaturesRound Shaft
Request Quote Now
Request Quote Now

We can supply 108990004, use the request quote form to request 108990004 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 108990004. The price and lead time for 108990004 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 108990004. We look forward to working with you to establish long-term relations of cooperation.
