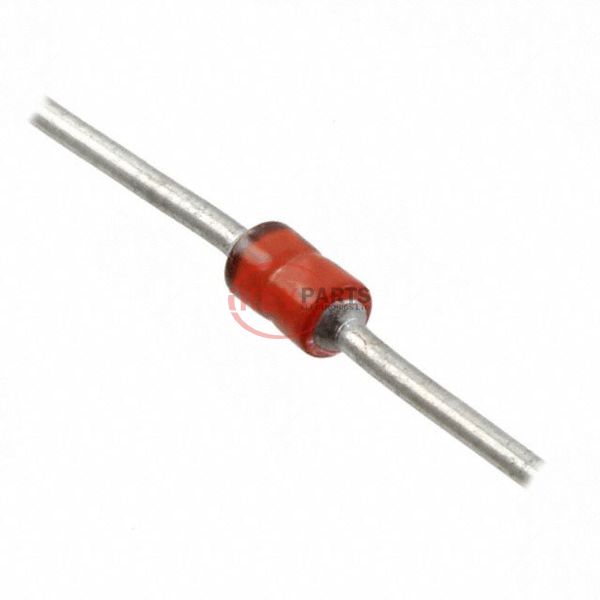

MAP5KE22AE3

Enlarger

Lmages are for reference only See Product Specitications

Microsemi MAP5KE22AE3

Manufacturer :
Microsemi
Mfr. Part # :
MAP5KE22AE3
Description
TVS DIODE 22V 35.5V DO204AL
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MAP5KE22AE3 PDF
In Stock
237
MAP5KE22AE3 Tech Specifications
SeriesMilitary, MIL-PRF-19500
PackageBulk
Part StatusObsolete
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)22V
Voltage - Breakdown (Min)24.4V
Voltage - Clamping (Max) @ Ipp35.5V
Current - Peak Pulse (10/1000µs)14.1A
Power - Peak Pulse500W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency-
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseDO-204AL, DO-41, Axial
Supplier Device PackageDO-204AL (DO-41)
Request Quote Now
Request Quote Now

We can supply MAP5KE22AE3, use the request quote form to request MAP5KE22AE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MAP5KE22AE3. The price and lead time for MAP5KE22AE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MAP5KE22AE3. We look forward to working with you to establish long-term relations of cooperation.
