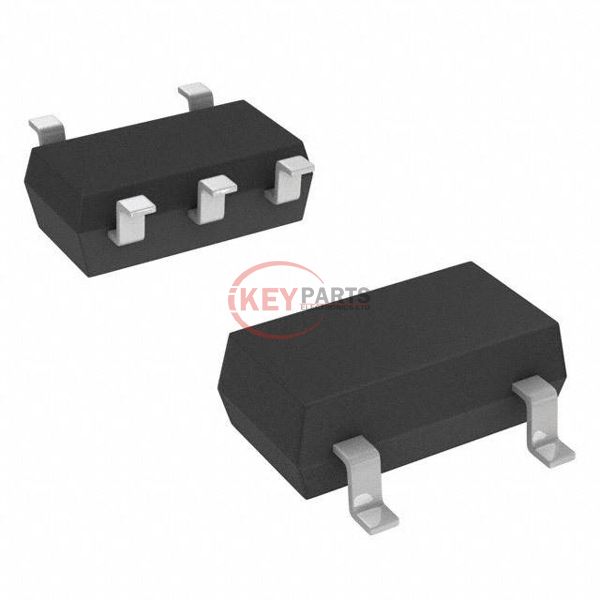

XN0121F00L

Enlarger

Lmages are for reference only See Product Specitications

Panasonic XN0121F00L

Manufacturer :
Panasonic
Mfr. Part # :
XN0121F00L
Description
TRANS 2NPN PREBIAS 0.3W MINI5
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
XN0121F00L PDF
In Stock
834
XN0121F00L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Transistor Type2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)4.7kOhms
Resistor - Emitter Base (R2)10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition150MHz
Power - Max300mW
Mounting TypeSurface Mount
Package / CaseSC-74A, SOT-753
Supplier Device PackageMini5-G1
Request Quote Now
Request Quote Now

We can supply XN0121F00L, use the request quote form to request XN0121F00L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number XN0121F00L. The price and lead time for XN0121F00L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# XN0121F00L. We look forward to working with you to establish long-term relations of cooperation.
