GPA042A100L-ND

Enlarger

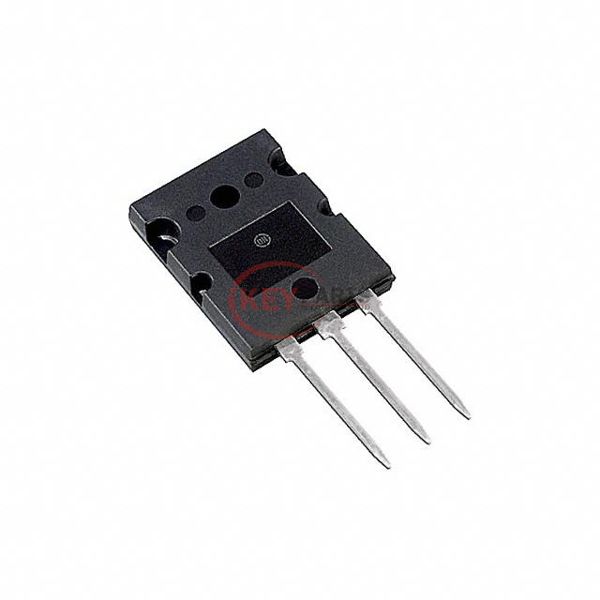

Lmages are for reference only See Product Specitications

SemiQ GPA042A100L-ND

Manufacturer :
SemiQ
Mfr. Part # :
GPA042A100L-ND
Description
IGBT 1000V 60A 463W TO264
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
GPA042A100L-ND PDF
In Stock
853
GPA042A100L-ND Tech Specifications
Series-
PackageTube
Part StatusObsolete
IGBT TypeNPT and Trench
Voltage - Collector Emitter Breakdown (Max)1000 V
Current - Collector (Ic) (Max)60 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.9V @ 15V, 60A
Power - Max463 W
Switching Energy13.1mJ (on), 6.3mJ (off)
Input TypeStandard
Gate Charge405 nC
Td (on/off) @ 25°C230ns/1480ns
Test Condition600V, 60A, 50Ohm, 15V
Reverse Recovery Time (trr)465 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264
Request Quote Now
Request Quote Now

We can supply GPA042A100L-ND, use the request quote form to request GPA042A100L-ND pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number GPA042A100L-ND. The price and lead time for GPA042A100L-ND depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# GPA042A100L-ND. We look forward to working with you to establish long-term relations of cooperation.
