RJH65T47DPQ-A0#T0

Enlarger

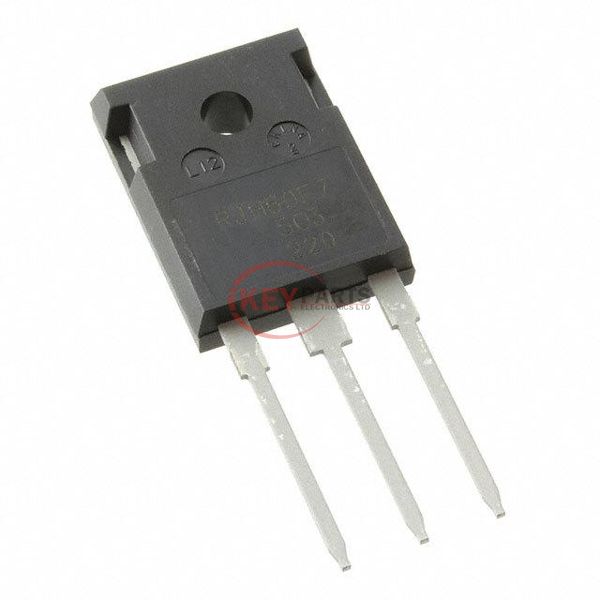

Lmages are for reference only See Product Specitications

Renesas Electronics America RJH65T47DPQ-A0#T0

Manufacturer :
Renesas Electronics America
Mfr. Part # :
RJH65T47DPQ-A0#T0
Description
IGBT TRENCH 650V 90A TO247A
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RJH65T47DPQ-A0#T0 PDF
In Stock
707
RJH65T47DPQ-A0#T0 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)90 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 45A
Power - Max375 W
Switching Energy520µJ (on), 560µJ (off)
Input TypeStandard
Gate Charge127 nC
Td (on/off) @ 25°C45ns/190ns
Test Condition400V, 45A, 10Ohm, 15V
Reverse Recovery Time (trr)100 ns
Operating Temperature175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247A
Request Quote Now
Request Quote Now

We can supply RJH65T47DPQ-A0#T0, use the request quote form to request RJH65T47DPQ-A0#T0 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RJH65T47DPQ-A0#T0. The price and lead time for RJH65T47DPQ-A0#T0 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RJH65T47DPQ-A0#T0. We look forward to working with you to establish long-term relations of cooperation.
