Series | - | |
Package | Tube | |
Part Status | Obsolete | |
IGBT Type | Trench | |
Voltage - Collector Emitter Breakdown (Max) | 900 V | |
Current - Collector (Ic) (Max) | 60 A | |
Current - Collector Pulsed (Icm) | 120 A | |
Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 60A | |
Power - Max | 180 W | |
Switching Energy | - | |
Input Type | Standard | |
Gate Charge | 260 nC | |
Td (on/off) @ 25°C | - | |
Test Condition | - | |
Reverse Recovery Time (trr) | 1.5 µs | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Through Hole | |

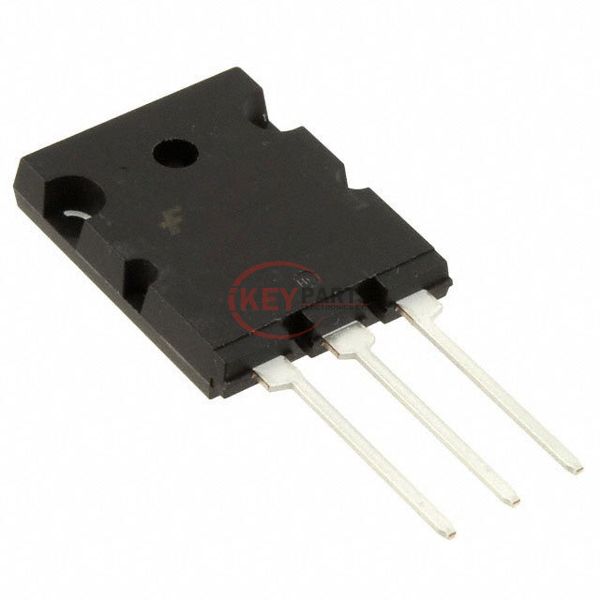

Package / Case | TO-264-3, TO-264AA | |
Supplier Device Package | TO-264-3 |
We can supply SGL60N90DG3TU, use the request quote form to request SGL60N90DG3TU pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SGL60N90DG3TU. The price and lead time for SGL60N90DG3TU depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SGL60N90DG3TU. We look forward to working with you to establish long-term relations of cooperation.
![]() |
