SGL5N150UFTU

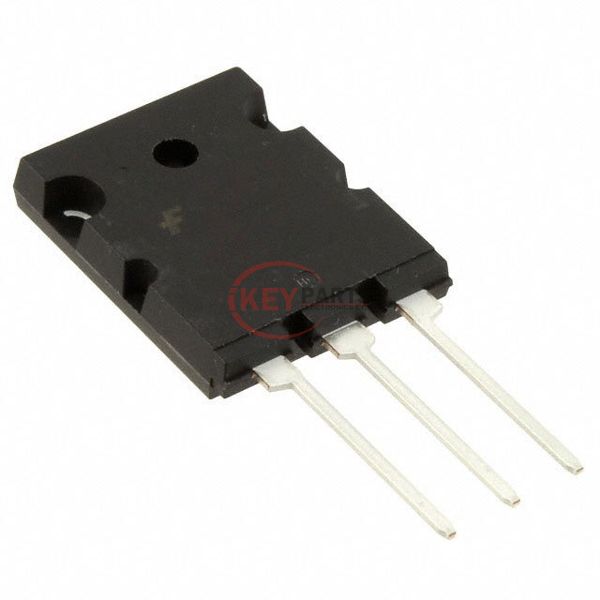

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor SGL5N150UFTU

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
SGL5N150UFTU
Description
IGBT 1500V 10A 125W TO264
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SGL5N150UFTU PDF
In Stock
744
SGL5N150UFTU Tech Specifications
Series-
PackageTube
Part StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1500 V
Current - Collector (Ic) (Max)10 A
Current - Collector Pulsed (Icm)20 A
Vce(on) (Max) @ Vge, Ic5.5V @ 10V, 5A
Power - Max125 W
Switching Energy190µJ (on), 100µJ (off)
Input TypeStandard
Gate Charge30 nC
Td (on/off) @ 25°C10ns/30ns
Test Condition600V, 5A, 10Ohm, 10V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264-3
Request Quote Now
Request Quote Now

We can supply SGL5N150UFTU, use the request quote form to request SGL5N150UFTU pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SGL5N150UFTU. The price and lead time for SGL5N150UFTU depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SGL5N150UFTU. We look forward to working with you to establish long-term relations of cooperation.
