Series | - | |
Package | Tube | |
Part Status | Obsolete | |
IGBT Type | NPT | |
Voltage - Collector Emitter Breakdown (Max) | 1200 V | |
Current - Collector (Ic) (Max) | 60 A | |
Current - Collector Pulsed (Icm) | - | |
Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 40A | |
Power - Max | 300 W | |
Switching Energy | 6.1mJ (on), 3mJ (off) | |
Input Type | Standard | |
Gate Charge | 150 nC | |
Td (on/off) @ 25°C | - | |
Test Condition | 600V, 40A, 39Ohm, 15V | |
Reverse Recovery Time (trr) | - | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Through Hole | |
Package / Case | TO-3P-3 Full Pack | |

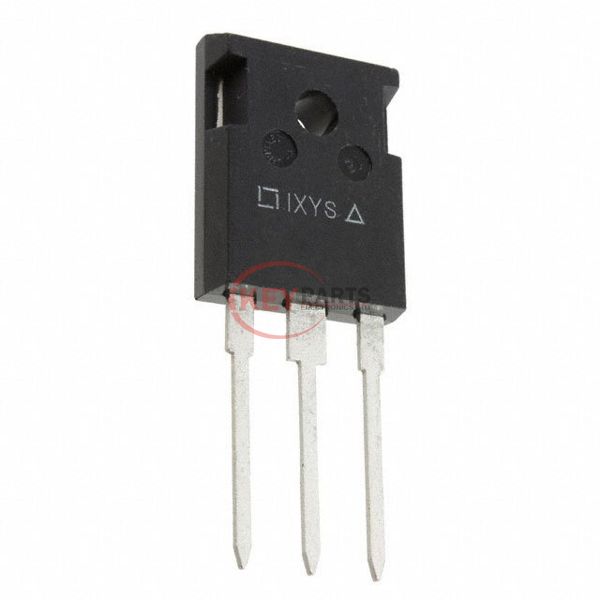

Supplier Device Package | TO-247AD |
We can supply IXEH40N120, use the request quote form to request IXEH40N120 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXEH40N120. The price and lead time for IXEH40N120 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXEH40N120. We look forward to working with you to establish long-term relations of cooperation.
![]() |
