GPA040A120L-FD

Enlarger

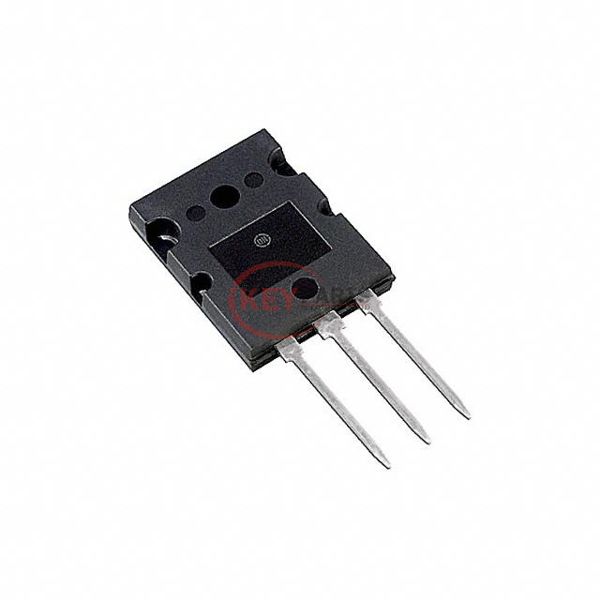

Lmages are for reference only See Product Specitications

SemiQ GPA040A120L-FD

Manufacturer :
SemiQ
Mfr. Part # :
GPA040A120L-FD
Description
IGBT 1200V 80A 480W TO264
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
GPA040A120L-FD PDF
In Stock
467
GPA040A120L-FD Tech Specifications
Series-
PackageTube
Part StatusObsolete
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 40A
Power - Max480 W
Switching Energy5.3mJ (on), 1.1mJ (off)
Input TypeStandard
Gate Charge480 nC
Td (on/off) @ 25°C55ns/200ns
Test Condition600V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr)200 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264
Request Quote Now
Request Quote Now

We can supply GPA040A120L-FD, use the request quote form to request GPA040A120L-FD pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number GPA040A120L-FD. The price and lead time for GPA040A120L-FD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# GPA040A120L-FD. We look forward to working with you to establish long-term relations of cooperation.
