GPA030A120I-FD

Enlarger

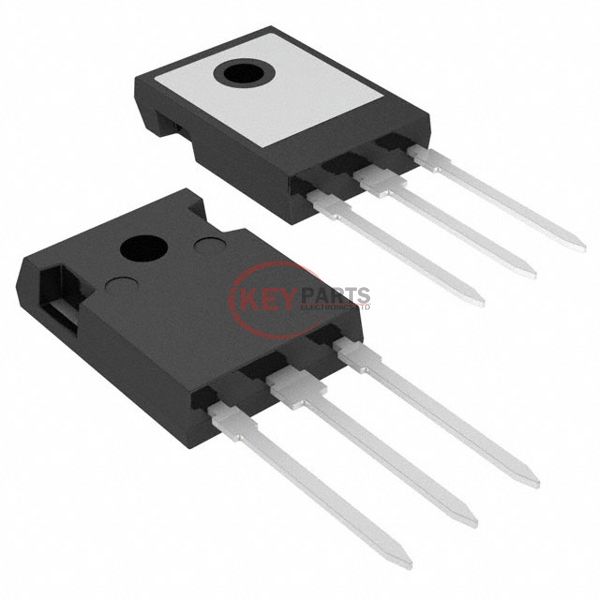

Lmages are for reference only See Product Specitications

SemiQ GPA030A120I-FD

Manufacturer :
SemiQ
Mfr. Part # :
GPA030A120I-FD
Description
IGBT 1200V 60A 329W TO247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
GPA030A120I-FD PDF
In Stock
710
GPA030A120I-FD Tech Specifications
Series-
PackageTube
Part StatusObsolete
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)60 A
Current - Collector Pulsed (Icm)90 A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 30A
Power - Max329 W
Switching Energy4.5mJ (on), 850µJ (off)
Input TypeStandard
Gate Charge330 nC
Td (on/off) @ 25°C40ns/245ns
Test Condition600V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr)450 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
Request Quote Now
Request Quote Now

We can supply GPA030A120I-FD, use the request quote form to request GPA030A120I-FD pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number GPA030A120I-FD. The price and lead time for GPA030A120I-FD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# GPA030A120I-FD. We look forward to working with you to establish long-term relations of cooperation.
