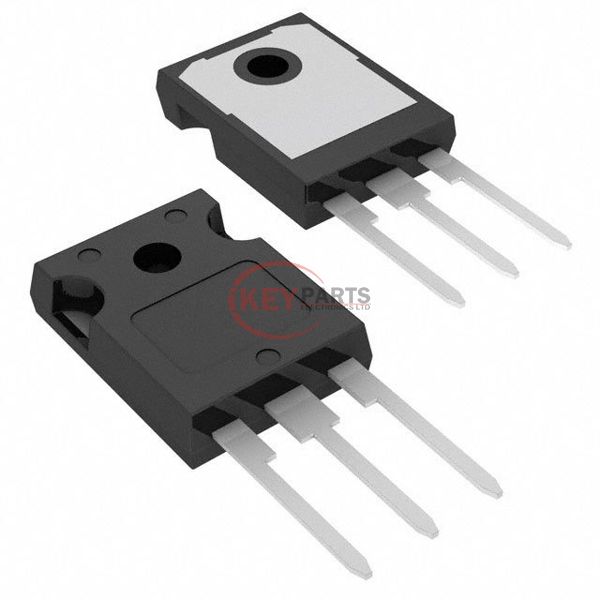

Sanyo Semiconductor/ON Semiconductor NGTB20N120IHSWG

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NGTB20N120IHSWG
Description
IGBT 1200V 20A TO247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NGTB20N120IHSWG PDF
In Stock
758
NGTB20N120IHSWG Tech Specifications
Series-
PackageTube
Part StatusObsolete
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 20A
Power - Max156 W
Switching Energy650µJ (off)
Input TypeStandard
Gate Charge155 nC
Td (on/off) @ 25°C-/160ns
Test Condition600V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
Request Quote Now
Request Quote Now

We can supply NGTB20N120IHSWG, use the request quote form to request NGTB20N120IHSWG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NGTB20N120IHSWG. The price and lead time for NGTB20N120IHSWG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NGTB20N120IHSWG. We look forward to working with you to establish long-term relations of cooperation.
