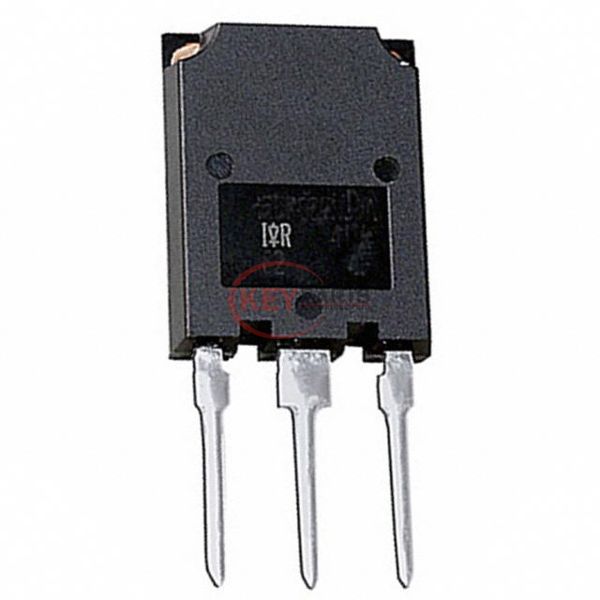

IRG4PSC71KD

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRG4PSC71KD

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRG4PSC71KD
Description
IGBT 600V 85A 350W SUPER247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRG4PSC71KD PDF
IRG4PSC71KD Tech Specifications
Series-
PackageBulk
Part StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)85 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 60A
Power - Max350 W
Switching Energy3.95mJ (on), 2.33mJ (off)
Input TypeStandard
Gate Charge340 nC
Td (on/off) @ 25°C82ns/282ns
Test Condition480V, 60A, 5Ohm, 15V
Reverse Recovery Time (trr)82 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-274AA
Supplier Device PackageSUPER-247™ (TO-274AA)
Request Quote Now
Request Quote Now

We can supply IRG4PSC71KD, use the request quote form to request IRG4PSC71KD pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRG4PSC71KD. The price and lead time for IRG4PSC71KD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRG4PSC71KD. We look forward to working with you to establish long-term relations of cooperation.
