Series | - | |
Package | Tube | |
Part Status | Obsolete | |
IGBT Type | NPT and Trench | |
Voltage - Collector Emitter Breakdown (Max) | 1200 V | |
Current - Collector (Ic) (Max) | 80 A | |
Current - Collector Pulsed (Icm) | 120 A | |
Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 40A | |
Power - Max | 455 W | |
Switching Energy | 5.8mJ (on), 1.5mJ (off) | |
Input Type | Standard | |
Gate Charge | 510 nC | |
Td (on/off) @ 25°C | 41ns/200ns | |
Test Condition | 600V, 40A, 5Ohm, 15V | |
Reverse Recovery Time (trr) | 220 ns | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Through Hole | |

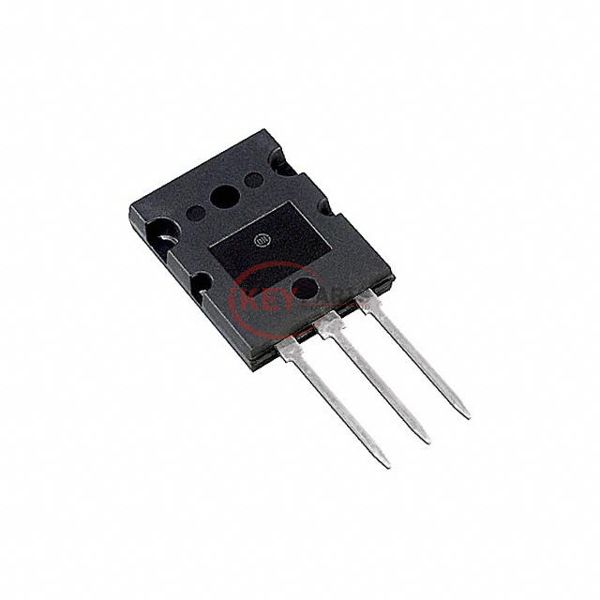

Package / Case | TO-264-3, TO-264AA | |
Supplier Device Package | TO-264 |
We can supply GPA040A120L-ND, use the request quote form to request GPA040A120L-ND pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number GPA040A120L-ND. The price and lead time for GPA040A120L-ND depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# GPA040A120L-ND. We look forward to working with you to establish long-term relations of cooperation.
![]() |
