STGW15S120DF3

Enlarger

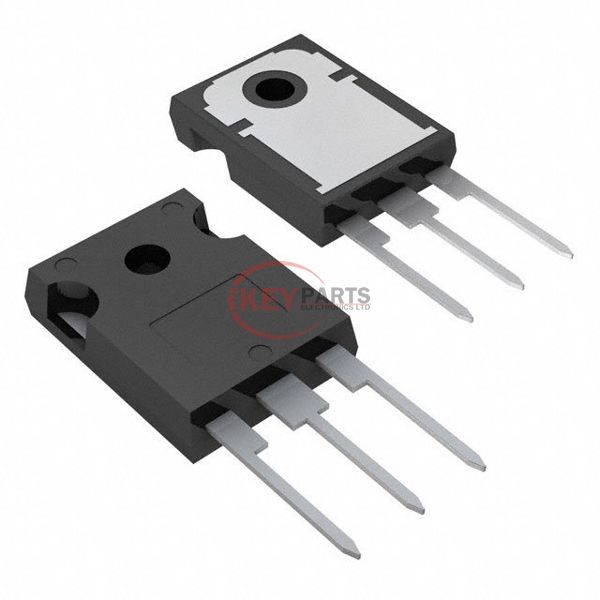

Lmages are for reference only See Product Specitications

STMicroelectronics STGW15S120DF3

Manufacturer :
STMicroelectronics
Mfr. Part # :
STGW15S120DF3
Description
IGBT 1200V 15A TO247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STGW15S120DF3 PDF
In Stock
815
STGW15S120DF3 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)30 A
Current - Collector Pulsed (Icm)60 A
Vce(on) (Max) @ Vge, Ic2.05V @ 15V, 15A
Power - Max259 W
Switching Energy540µJ (on), 1.38mJ (off)
Input TypeStandard
Gate Charge53 nC
Td (on/off) @ 25°C23ns/140ns
Test Condition600V, 15A, 22Ohm, 15V
Reverse Recovery Time (trr)270 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
Request Quote Now
Request Quote Now

We can supply STGW15S120DF3, use the request quote form to request STGW15S120DF3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STGW15S120DF3. The price and lead time for STGW15S120DF3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STGW15S120DF3. We look forward to working with you to establish long-term relations of cooperation.
