NGB8202ANTF4G

Enlarger

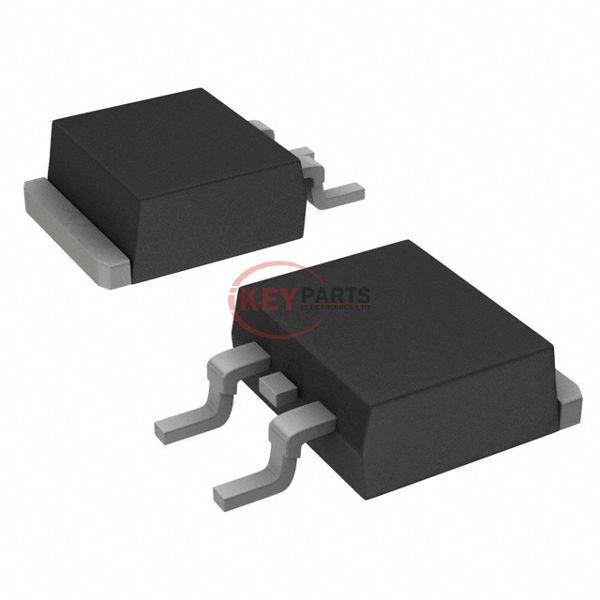

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse NGB8202ANTF4G

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
NGB8202ANTF4G
Description
IGBT 440V 20A 150W D2PAK
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NGB8202ANTF4G PDF
NGB8202ANTF4G Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)440 V
Current - Collector (Ic) (Max)20 A
Current - Collector Pulsed (Icm)50 A
Vce(on) (Max) @ Vge, Ic1.9V @ 4.5V, 20A
Power - Max150 W
Switching Energy-
Input TypeLogic
Gate Charge-
Td (on/off) @ 25°C-/5µs
Test Condition300V, 9A, 1kOhm, 5V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device PackageD2PAK-3
Request Quote Now
Request Quote Now

We can supply NGB8202ANTF4G, use the request quote form to request NGB8202ANTF4G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NGB8202ANTF4G. The price and lead time for NGB8202ANTF4G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NGB8202ANTF4G. We look forward to working with you to establish long-term relations of cooperation.
