Series | - | |
Package | Tube | |
Part Status | Active | |
IGBT Type | - | |
Voltage - Collector Emitter Breakdown (Max) | 600 V | |
Current - Collector (Ic) (Max) | 45 A | |
Current - Collector Pulsed (Icm) | - | |
Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 22A | |
Power - Max | 40 W | |
Switching Energy | - | |
Input Type | Standard | |
Gate Charge | 45 nC | |
Td (on/off) @ 25°C | 35ns/90ns | |
Test Condition | 300V, 22A, 5Ohm, 15V | |
Reverse Recovery Time (trr) | - | |
Operating Temperature | 150°C (TJ) | |
Mounting Type | Through Hole | |

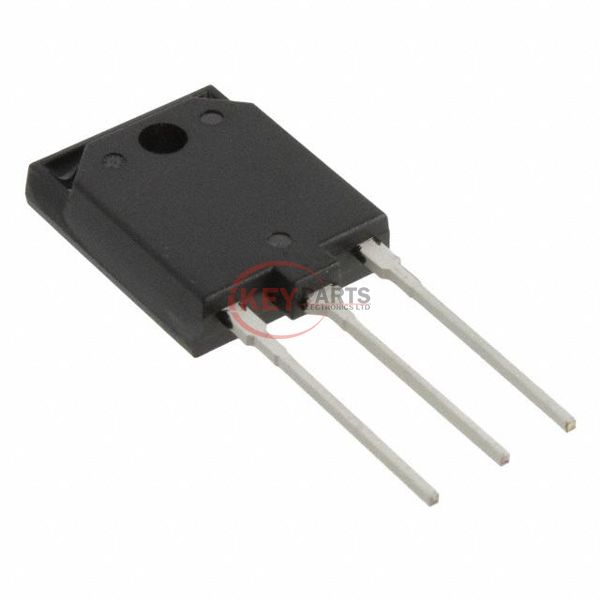

Package / Case | TO-3PFM, SC-93-3 | |
Supplier Device Package | TO-3PFM |
We can supply RJP60D0DPM-00#T1, use the request quote form to request RJP60D0DPM-00#T1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RJP60D0DPM-00#T1. The price and lead time for RJP60D0DPM-00#T1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RJP60D0DPM-00#T1. We look forward to working with you to establish long-term relations of cooperation.
![]() |
