IPG20N06S3L-23

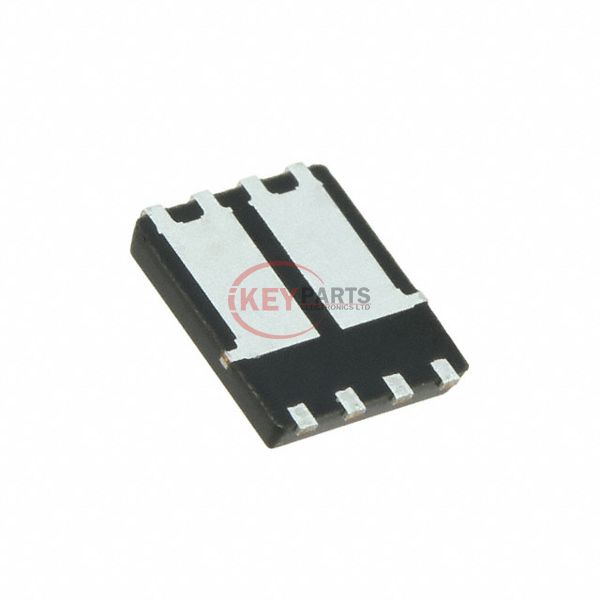

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPG20N06S3L-23

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPG20N06S3L-23
Description
MOSFET 2N-CH 55V 20A TDSON-8
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPG20N06S3L-23 PDF
In Stock
295
IPG20N06S3L-23 Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)
Part StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)55V
Current - Continuous Drain (Id) @ 25°C20A
Rds On (Max) @ Id, Vgs23mOhm @ 16A, 10V
Vgs(th) (Max) @ Id2.2V @ 20µA
Gate Charge (Qg) (Max) @ Vgs42nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds2950pF @ 25V
Power - Max45W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device PackagePG-TDSON-8-4
Request Quote Now
Request Quote Now

We can supply IPG20N06S3L-23, use the request quote form to request IPG20N06S3L-23 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPG20N06S3L-23. The price and lead time for IPG20N06S3L-23 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPG20N06S3L-23. We look forward to working with you to establish long-term relations of cooperation.
