AON5802B

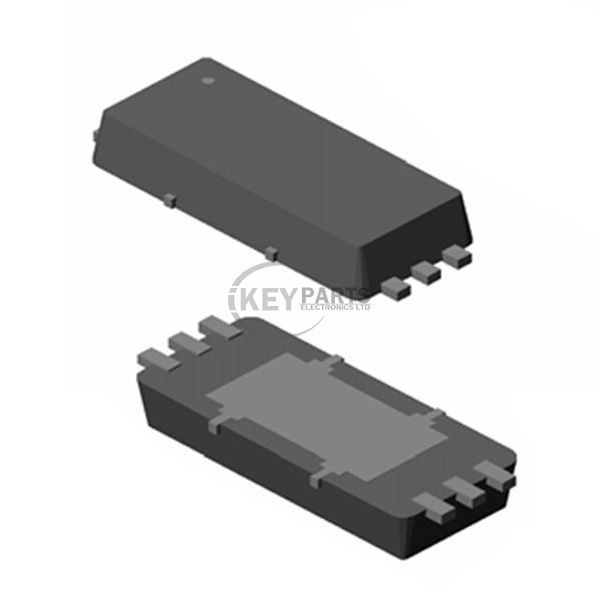

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON5802B

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON5802B
Description
MOSFET 2N-CH 30V 7.2A 6DFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON5802B PDF
AON5802B Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET Type2 N-Channel (Dual) Common Drain
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C7.2A
Rds On (Max) @ Id, Vgs19mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1150pF @ 15V
Power - Max1.6W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-SMD, Flat Lead Exposed Pad
Supplier Device Package6-DFN-EP (2x5)
Request Quote Now
Request Quote Now

We can supply AON5802B, use the request quote form to request AON5802B pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON5802B. The price and lead time for AON5802B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON5802B. We look forward to working with you to establish long-term relations of cooperation.
