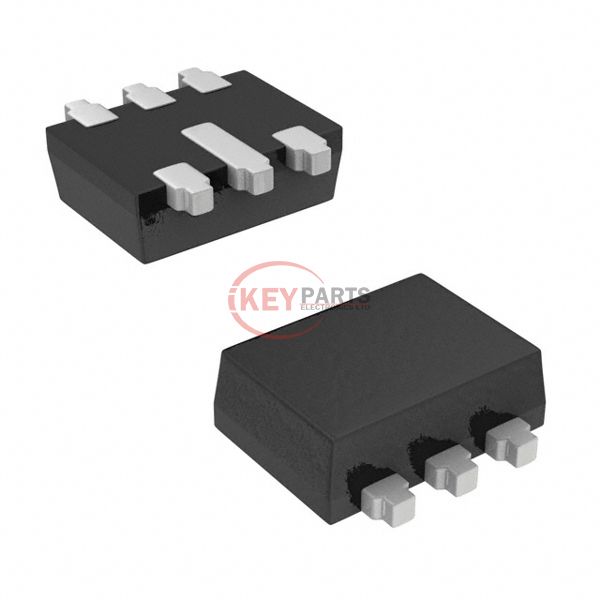

AO5804E

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AO5804E

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AO5804E
Description
MOSFET 2N-CH 20V 0.5A SC89-6L
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AO5804E PDF
In Stock
907
AO5804E Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C500mA
Rds On (Max) @ Id, Vgs550mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds45pF @ 10V
Power - Max280mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device PackageSC-89-6
Request Quote Now
Request Quote Now

We can supply AO5804E, use the request quote form to request AO5804E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AO5804E. The price and lead time for AO5804E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AO5804E. We look forward to working with you to establish long-term relations of cooperation.
