Series | - | |
Package | Tape & Reel (TR) | |
Part Status | Obsolete | |
FET Type | 2 N-Channel (Dual) | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 20V | |
Current - Continuous Drain (Id) @ 25°C | 500mA | |
Rds On (Max) @ Id, Vgs | 550mOhm @ 500mA, 4.5V | |
Vgs(th) (Max) @ Id | 1V @ 250µA | |
Gate Charge (Qg) (Max) @ Vgs | 1nC @ 4.5V | |
Input Capacitance (Ciss) (Max) @ Vds | 45pF @ 10V | |
Power - Max | 280mW | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

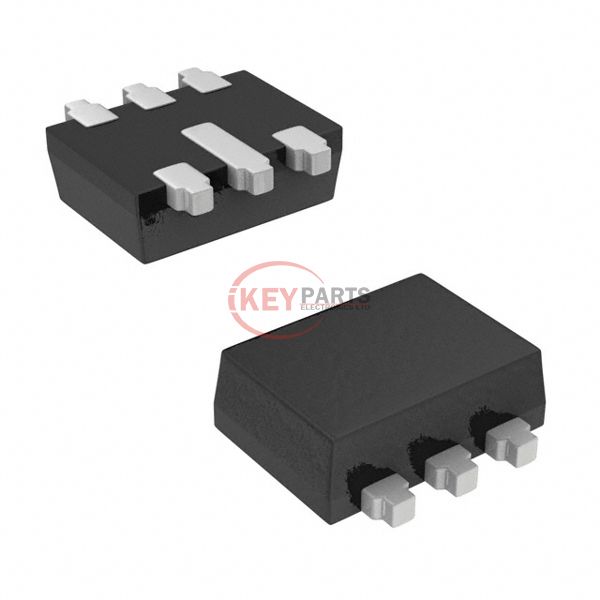

Package / Case | SOT-563, SOT-666 | |
Supplier Device Package | SC-89-6 |
We can supply AO5804EL, use the request quote form to request AO5804EL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AO5804EL. The price and lead time for AO5804EL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AO5804EL. We look forward to working with you to establish long-term relations of cooperation.
![]() |
