BTS7904BATMA1

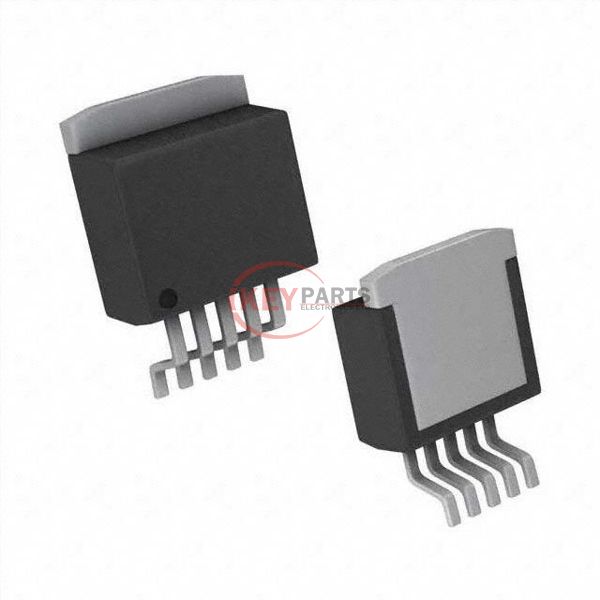

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BTS7904BATMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BTS7904BATMA1
Description
MOSFET N/P-CH 55V/30V 40A TO263
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BTS7904BATMA1 PDF
In Stock
749
BTS7904BATMA1 Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN and P-Channel
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)55V, 30V
Current - Continuous Drain (Id) @ 25°C40A
Rds On (Max) @ Id, Vgs11.7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.2V @ 40µA
Gate Charge (Qg) (Max) @ Vgs121nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds6100pF @ 25V
Power - Max69W, 96W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device PackagePG-TO263-5-1
Request Quote Now
Request Quote Now

We can supply BTS7904BATMA1, use the request quote form to request BTS7904BATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BTS7904BATMA1. The price and lead time for BTS7904BATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BTS7904BATMA1. We look forward to working with you to establish long-term relations of cooperation.
