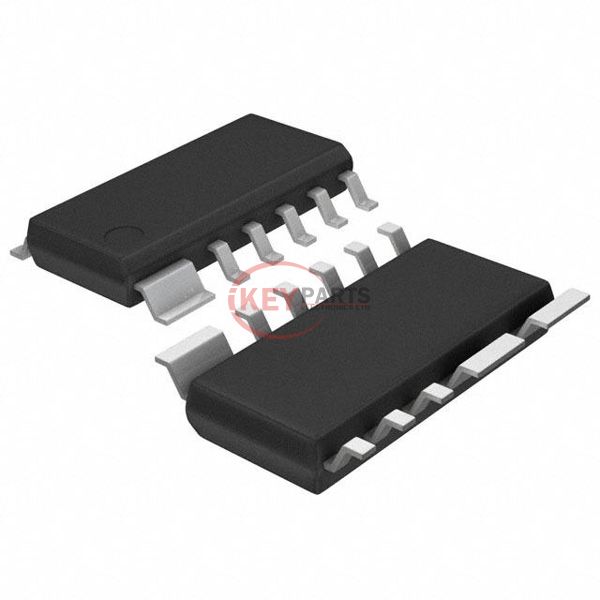

FDQ7698S

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDQ7698S

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDQ7698S
Description
MOSFET 2N-CH 30V 12A/15A 14SOIC
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDQ7698S PDF
In Stock
641
FDQ7698S Tech Specifications
SeriesPowerTrench®
PackageTape & Reel (TR)
Part StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C12A, 15A
Rds On (Max) @ Id, Vgs7.5mOhm @ 15A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds1324pF @ 15V
Power - Max1.1W, 1.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case14-SOIC (0.154", 3.90mm Width), 11 Leads, Fused Leads
Supplier Device Package14-SO
Request Quote Now
Request Quote Now

We can supply FDQ7698S, use the request quote form to request FDQ7698S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDQ7698S. The price and lead time for FDQ7698S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDQ7698S. We look forward to working with you to establish long-term relations of cooperation.
