AO6804

Enlarger

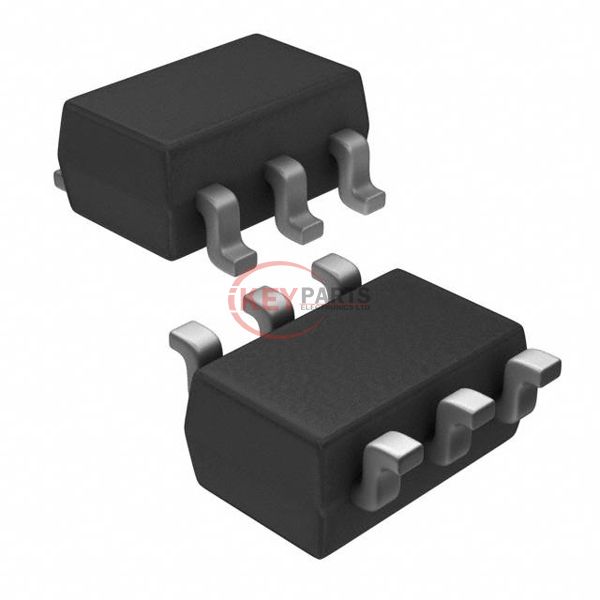

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AO6804

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AO6804
Description
MOSFET 2N-CH 20V 4A 6TSOP
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AO6804 PDF
In Stock
949
AO6804 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET Type2 N-Channel (Dual) Common Drain
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C4A
Rds On (Max) @ Id, Vgs32mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds725pF @ 10V
Power - Max800mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-74, SOT-457
Supplier Device Package6-TSOP
Request Quote Now
Request Quote Now

We can supply AO6804, use the request quote form to request AO6804 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AO6804. The price and lead time for AO6804 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AO6804. We look forward to working with you to establish long-term relations of cooperation.
