AON5820_101

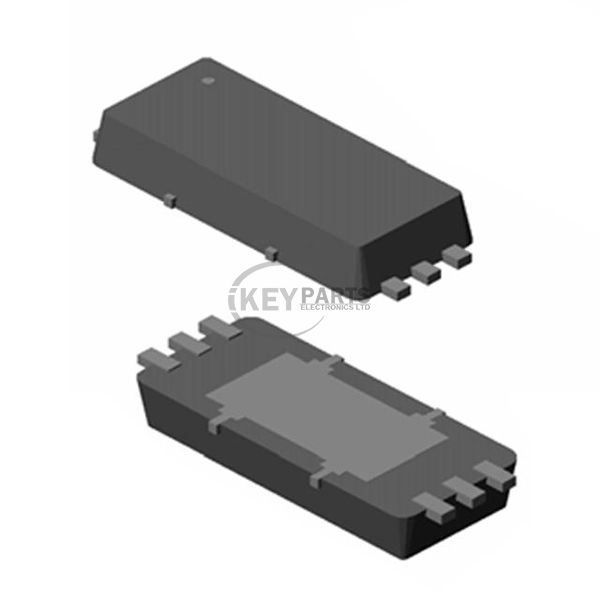

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON5820_101

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON5820_101
Description
MOSFET 2N-CH 20V 10A 6DFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON5820_101 PDF
In Stock
983
AON5820_101 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
FET Type2 N-Channel (Dual) Common Drain
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C10A
Rds On (Max) @ Id, Vgs9.5mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs15nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1510pF @ 10V
Power - Max1.7W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-SMD, Flat Lead Exposed Pad
Supplier Device Package6-DFN-EP (2x5)
Request Quote Now
Request Quote Now

We can supply AON5820_101, use the request quote form to request AON5820_101 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON5820_101. The price and lead time for AON5820_101 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON5820_101. We look forward to working with you to establish long-term relations of cooperation.
