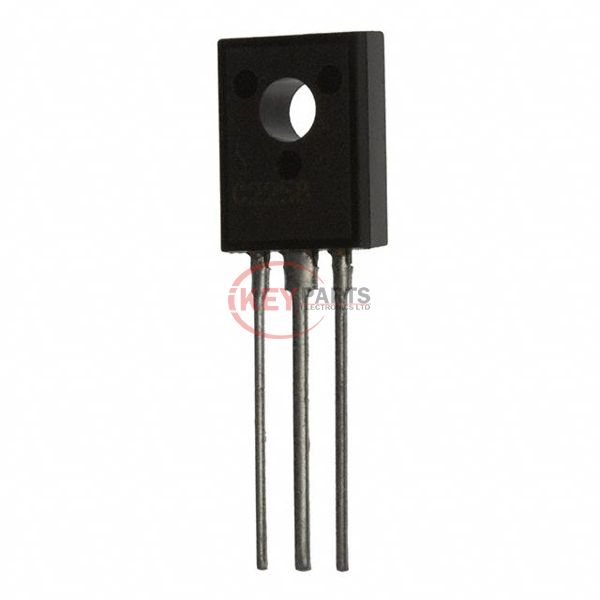

2SC15680R

Enlarger

Lmages are for reference only See Product Specitications

Panasonic 2SC15680R

Manufacturer :
Panasonic
Mfr. Part # :
2SC15680R
Description
TRANS NPN 18V 1A TO-126
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SC15680R PDF
In Stock
525
2SC15680R Tech Specifications
Series-
PackageBulk
Part StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)18 V
Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 1A
Current - Collector Cutoff (Max)10µA
DC Current Gain (hFE) (Min) @ Ic, Vce130 @ 500mA, 2V
Power - Max1.2 W
Frequency - Transition150MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-225AA, TO-126-3
Supplier Device PackageTO-126B-A1
Request Quote Now
Request Quote Now

We can supply 2SC15680R, use the request quote form to request 2SC15680R pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SC15680R. The price and lead time for 2SC15680R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SC15680R. We look forward to working with you to establish long-term relations of cooperation.
