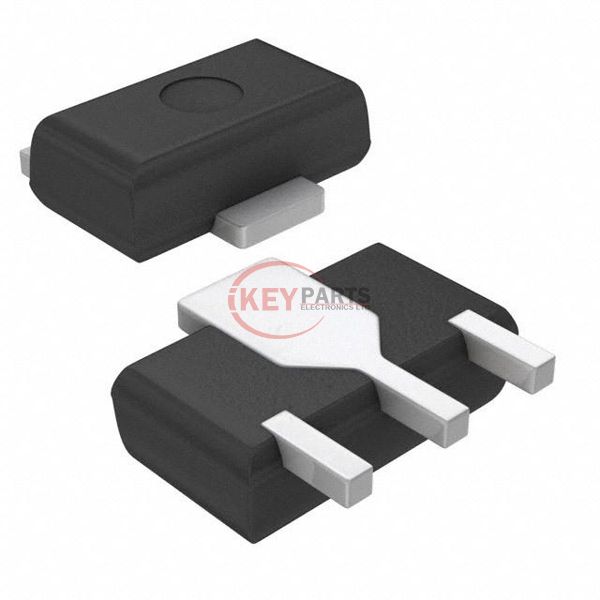

2SB0766ARL

Enlarger

Lmages are for reference only See Product Specitications

Panasonic 2SB0766ARL

Manufacturer :
Panasonic
Mfr. Part # :
2SB0766ARL
Description
TRANS PNP 50V 1A MINI-PWR
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SB0766ARL PDF
In Stock
800
2SB0766ARL Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Transistor TypePNP
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)50 V
Vce Saturation (Max) @ Ib, Ic400mV @ 50mA, 500mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce120 @ 500mA, 10V
Power - Max1 W
Frequency - Transition200MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageMiniP3-F1
Request Quote Now
Request Quote Now

We can supply 2SB0766ARL, use the request quote form to request 2SB0766ARL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SB0766ARL. The price and lead time for 2SB0766ARL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SB0766ARL. We look forward to working with you to establish long-term relations of cooperation.
