ZXT10N15DE6TC

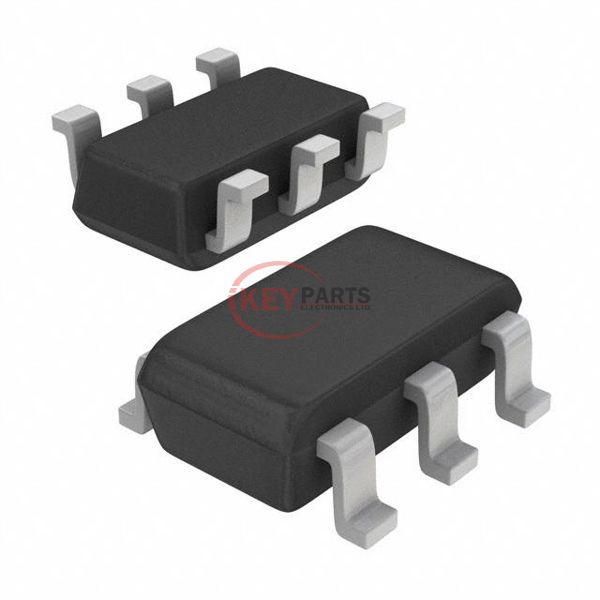

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) ZXT10N15DE6TC

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
ZXT10N15DE6TC
Description
TRANS NPN 15V 4A SOT23-6
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ZXT10N15DE6TC PDF
In Stock
429
ZXT10N15DE6TC Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)4 A
Voltage - Collector Emitter Breakdown (Max)15 V
Vce Saturation (Max) @ Ib, Ic260mV @ 50mA, 4A
Current - Collector Cutoff (Max)100nA
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 3A, 2V
Power - Max1.1 W
Frequency - Transition120MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-23-6
Supplier Device PackageSOT-23-6
Request Quote Now
Request Quote Now

We can supply ZXT10N15DE6TC, use the request quote form to request ZXT10N15DE6TC pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ZXT10N15DE6TC. The price and lead time for ZXT10N15DE6TC depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ZXT10N15DE6TC. We look forward to working with you to establish long-term relations of cooperation.
