PZTA14/ZLF

Enlarger

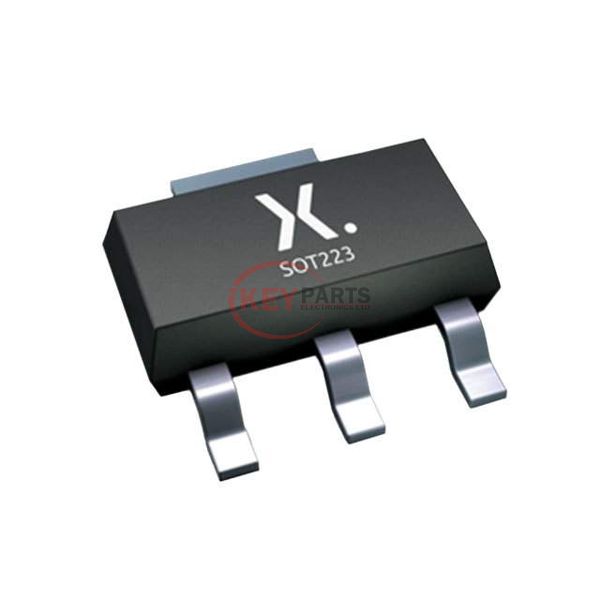

Lmages are for reference only See Product Specitications

Nexperia PZTA14/ZLF

Manufacturer :
Nexperia
Mfr. Part # :
PZTA14/ZLF
Description
DARLINGTON TRANSISTOR
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PZTA14/ZLF PDF
In Stock
549
PZTA14/ZLF Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)500 mA
Voltage - Collector Emitter Breakdown (Max)30 V
Vce Saturation (Max) @ Ib, Ic1.5V @ 100µA, 100mA
Current - Collector Cutoff (Max)100nA
DC Current Gain (hFE) (Min) @ Ic, Vce20000 @ 100mA, 5V
Power - Max1.25 W
Frequency - Transition125MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-261-4, TO-261AA
Supplier Device PackageSOT-223
Request Quote Now
Request Quote Now

We can supply PZTA14/ZLF, use the request quote form to request PZTA14/ZLF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PZTA14/ZLF. The price and lead time for PZTA14/ZLF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PZTA14/ZLF. We look forward to working with you to establish long-term relations of cooperation.
