2SC4420

Enlarger

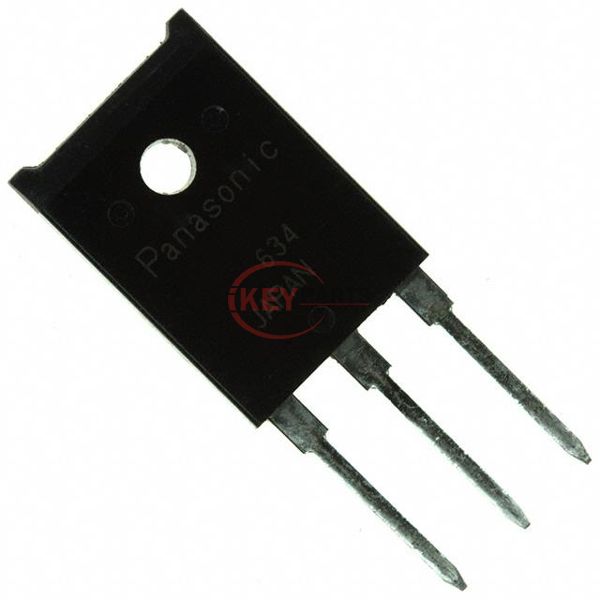

Lmages are for reference only See Product Specitications

Panasonic 2SC4420

Manufacturer :
Panasonic
Mfr. Part # :
2SC4420
Description
TRANS NPN 800V 3A TOP-3F
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SC4420 PDF
In Stock
378
2SC4420 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)3 A
Voltage - Collector Emitter Breakdown (Max)800 V
Vce Saturation (Max) @ Ib, Ic1.5V @ 160mA, 800mA
Current - Collector Cutoff (Max)50µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce6 @ 800mA, 5V
Power - Max3 W
Frequency - Transition10MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTOP-3F
Supplier Device PackageTOP-3F-A1
Request Quote Now
Request Quote Now

We can supply 2SC4420, use the request quote form to request 2SC4420 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SC4420. The price and lead time for 2SC4420 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SC4420. We look forward to working with you to establish long-term relations of cooperation.
